Hi-Res Patches for Fallout1&2 & the BIS Mapper

Discussion in 'Fallout General Modding' started by Mash, May 14, 2008.

  1. IscarioT

    IscarioT First time out of the vault

    Aug 10, 2015
    Hello. A question: how could I get official BIS mapper work with current RP version? I have tried to apply city patch and high res patch, but it still does not work :/.

  2. Adolf

    Adolf First time out of the vault

    Nov 6, 2015
    What's wrong?

  3. TyrantRC

    TyrantRC First time out of the vault

    Jun 3, 2015
    In F1 high res patch, Is there any way to get the view from 1440x900 resolution but also get a the size of the interface from 800x600, I love the high res view but the interface is so small and the option with 2x scaling just limit my resolution choices to 2 for some reason. I also tried the zooming option in the other package but it just jumps like crazy, it goes from normal view to almost satellite view when I zoom out with the mousewheel and I don't now if that is configurable

  4. Agent Locke

    Agent Locke First time out of the vault

    Feb 8, 2016
    Is there any way to scale the game x4 instead of x2?

  5. BreakinBenny

    BreakinBenny First time out of the vault

    Jun 18, 2015
    Why would you want to zoom in so far? It'd be like cramming yer face into the monitor.

  6. Agent Locke

    Agent Locke First time out of the vault

    Feb 8, 2016
    Because I'm trying to play the game on my Surface Pro 4, which is a 2736x1824 resolution. Scaling at 2x is 50% too small.

  7. BreakinBenny

    BreakinBenny First time out of the vault

    Jun 18, 2015
    Oh... okay then, never knew about having the resolution of about 3K though I knew about 4K.

  8. Sduibek

    Sduibek If only modding paid the bills... Moderator Modder

    Oct 27, 2010
    Does anyone know what's going on with @Mash these days? I have not been able to hear back from him via email contact.

  9. .Pixote.

    .Pixote. Venerable Relic of the Wastes
    Modder

    Sep 14, 2009
    Matt has been missing in action for about 2 years now...come back MASH we need ya.

  10. BreakinBenny

    BreakinBenny First time out of the vault

    Jun 18, 2015
    Yes, where could Mash be? If he's nowhere to be found at least his High-Resolution mod lives on in Falltergeist.

  11. Sduibek

    Sduibek If only modding paid the bills... Moderator Modder

    Oct 27, 2010
    I just wish we had the source code for it :( Projects don't have to die if the source were released...

  12. burn

    burn Still Mildly Glowing
    Modder

    Apr 22, 2012
    I was thinking about creating a larger font for F2, but then I realized that it just won't fit into inventory screen, etc.

    I also run a quick search for Matt Wells on github/linkedin, but couldn't find anyone fitting Mash's profile.

    Guess we're stuck waiting for falltergeist, which means some 3-4 years, probably.

  13. notdefix

    notdefix First time out of the vault

    Jul 28, 2016
    I'm attempting, without much success, to add custom frm walls to the proto list.

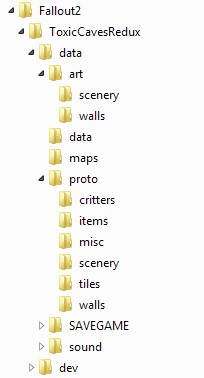

    I've set up the following folder structure (only custom dirs shown):

    I've extracted walls.lst and placed it in art/walls and I've extracted the other walls.lst and placed it in proto/walls.

    I've added my own .frm file names to the art/walls/walls.lst and I can see the art resources in the mapper (so that part seems ok).
    I've switched BIS mapper to librarian=1 and I can create new walls. when I quit the mapper, the new proto files are added to the proto/walls/walls.lst but no .pro file is created.

    I'm apparently doing something wrong, but I can't seem to find how to fix this, nor can I find the solution in the various docs I've downloaded. Anyone got any hints?

  14. Darek

    Darek is currently unavailable

    Jan 7, 2008
    I believe you need to have the "dev" folder set up exactly like this:
    C:\Fallout2\dev\proto\walls

    • [Like] [Like] x 1
  15. Fat Luke

    Fat Luke First time out of the vault

    Jul 23, 2016
    I had some similiar problems in past with creating protos and after some failed attempts I solved it in 2 steps:
    1. making folders in this order

    2. disabling "read only" attribute on ALL protos files in fallout folder (don't forget set back "read only" before you will run fallout2.exe)

    This thread was really helpful to me - http://www.nma-fallout.com/threads/prototype-problem.160476/

  16. notdefix

    notdefix First time out of the vault

    Jul 28, 2016
    Thanks for the replies.

    I've read the topic linked by Fat Luke (thanks!) and finally got it to work. For anyone else who tries to get this to work in the future, this is what worked for me:

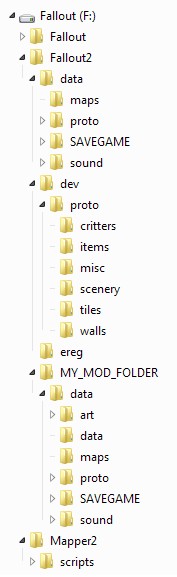

    I've created a new partition (F:) and reinstalled Fallout2, BIS Mapper and created the F:\Fallout2\dev\proto\... directories. I now have the following directory structure:

    I've edited the following .cfg files:

    F:\Fallout2\fallout2.cfg
    [sound]
    music_path1=F:\Fallout2\data\sound\music\
    music_path2=F:\Fallout2\data\sound\music\

    [system]
    critter_dat=F:\Fallout2\critter.dat
    critter_patches=F:\Fallout2\data

    master_dat=F:\Fallout2\master.dat
    master_patches=F:\Fallout2\data

    F:\Fallout2\MY_MOD_FOLDER\Fallout2.cfg
    [sound]
    music_path1=F:\Fallout2\data\sound\music\
    music_path2=F:\Fallout2\MY_MOD_FOLDER\data\sound\music\

    [system]
    critter_dat=F:\Fallout2\critter.dat
    critter_patches=F:\Fallout2\MY_MOD_FOLDER\data

    master_dat=F:\Fallout2\master.dat
    master_patches=F:\Fallout2\MY_MOD_FOLDER\data

    F:\Mapper2\mapper2.cfg
    [mapper]
    librarian=1

    [sound]
    music_path1=F:\Fallout2\data\sound\music\
    music_path2=F:\Fallout2\MY_MOD_FOLDER\data\sound\music\

    [system]
    critter_dat=F:\Fallout2\critter.dat
    critter_patches=F:\Fallout2\MY_MOD_FOLDER\data

    master_dat=F:\Fallout2\master.dat
    master_patches=F:\Fallout2\MY_MOD_FOLDER\data

    And that finally got it working for me. Thanks a lot for the help!

    Cheers

    Last edited: Aug 10, 2016
  17. .Pixote.

    .Pixote. Venerable Relic of the Wastes
    Modder

    Sep 14, 2009
    Yep thats the way...

  18. Sduibek

    Sduibek If only modding paid the bills... Moderator Modder

    Oct 27, 2010
    Am I to assume Mash is still MIA? :'(

  19. .Pixote.

    .Pixote. Venerable Relic of the Wastes
    Modder

    Sep 14, 2009
    Yep...sadly still missing. Did he provide the source files for the patch?

  20. Sduibek

    Sduibek If only modding paid the bills... Moderator Modder

    Oct 27, 2010
    Not that I recall. I emailed him a couple times asking if he'd be willing to provide them.
